50W Portable Solar Electricity System for Home Use

Publish Time:2017/05/26 Home Solar System View:1018

Item BSL-50W01
Brand Bingsolar
Solar Panel 50W/18V
AC Output 220V AC
USB Output DC5V, 500mA
Host Output 350W
Battery 12V/17Ah
Wire for solar power 6m
LED Buble 12V/3W
Warranty 12 months
Detail Parameter

What is features for solar home lighting system ?
1. Solar power don’t need oil,gass,coal and other fossil fuel, directly absorb sunlight, don’t produce cost, which can improve life quality where is in non-electricity areas.
2. To adopt 1.0mm board to weld, beautiful and elegant appearance. Spraying plastics for surface,which is more suitable for outer field environment.
3. To adopt polycrystalline high efficient solar panel,laminated by tempered glass and aluminum frame, fashion and pretty,sturdy and durable,easy to carry and transport.
4. Host have electric detection function, to keep you know the electric state at any time.
5. Match 12V/3W LED light, the LED buble can be chargeable according to clients’ requirement.
6. Very easy to operate, simply input and output device, don’t need install to test, convenient and efficient.
7. Built-in battery with maintenance free, 2pcs 12V independent output, over-charge,over-discharge and over-load,over-heat protection and anti-short circuit.
8. Specially USB output circuit, completely being suitable for charging mobile phones and other electric appliances.
9. Solar home system, light weight, silence and quietness, light and handy,shake-proof and dust-proof, environmental friendly,is very necessories for non-electricity area.

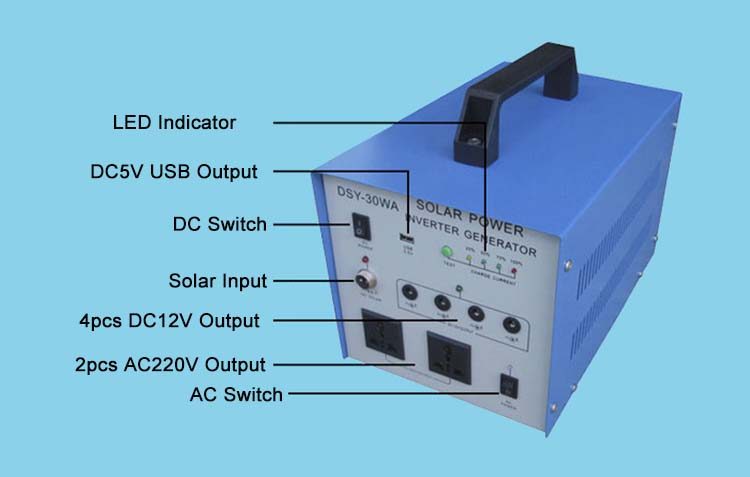

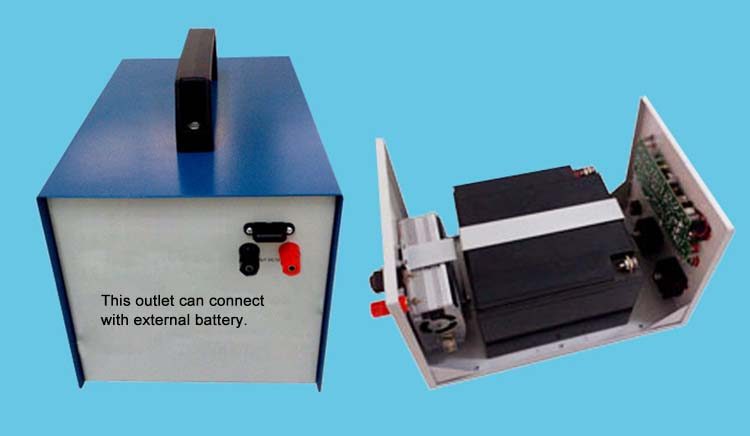

Display for Solar Home Lighting System

Datasheet for Solar Home Lighting System
Item No.: BSL-50W01,
Solar Panel: 18V/30Wp or 18V/50Wp,
Battery: 12V/17Ah,
Controller: 12V/5A,
DC Output: 4pcs 12V/5A and 1pcs USB 5V/500mA,
AC Output: Modified Sine,
Outer Case Material: 1.00mm board, spraying plastic for appearance,
Products Dimension: 330*190*200mm,
Accessories: 1pcs host, 1pcs solar panel, 2pcs cable for buble, 2pcs 1.5W LED bubles, 1pcs USB cable,
Package: host, 385*256*278mm; Carton, 530*398*305mm,
Weight: 2 sets/carton, 10kg(don’t include battery).
