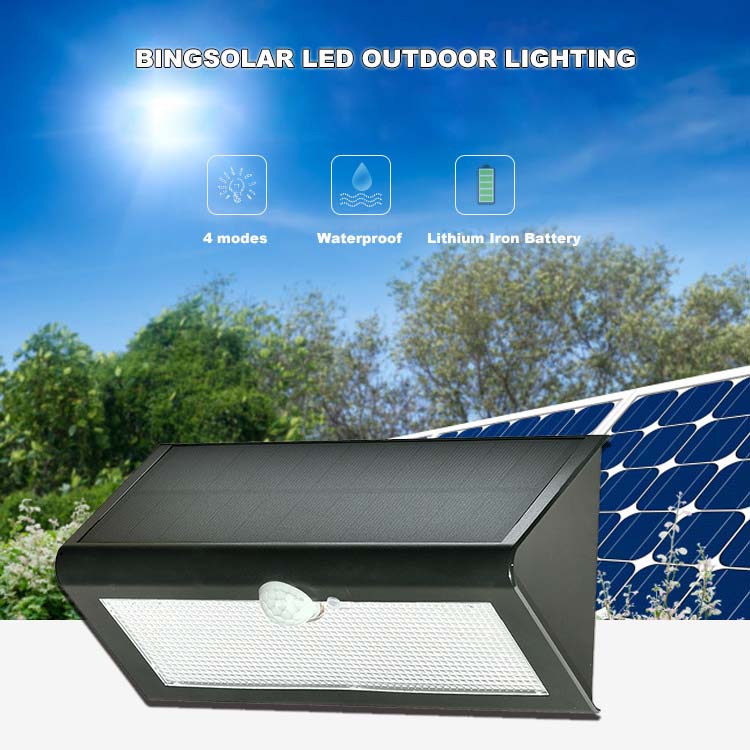

6W LED Outdoor Motion Sensor Flood Lights for Brightness

Publish Time:2017/04/11 Solar LED Sensor Light View:435

Item BL06W-01
Brand Bingsolar
Power 6.0W
Voltage 6.0V
Waterproof IP65
Color Pure white/warm white
Dimension 206*106*79mm
Lifespan  50000 hours
Outer Shell Advanced ABS Plastic
Warranty 3 years

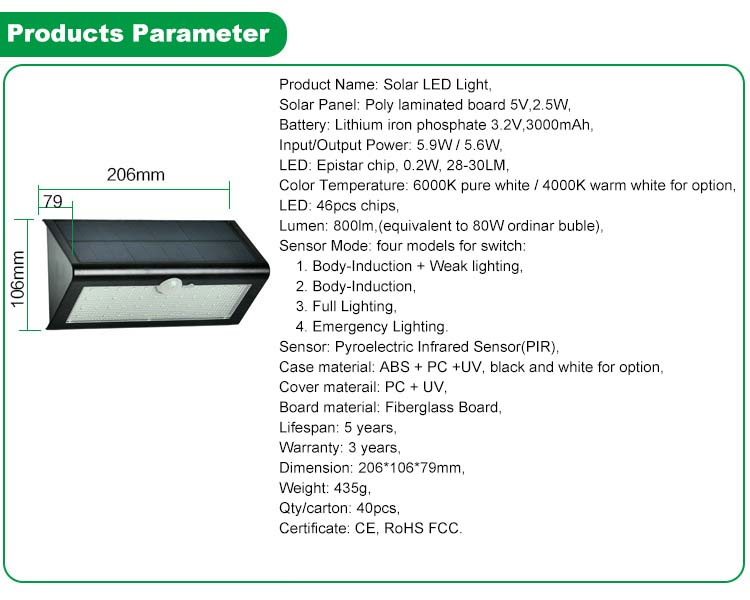

Detail Parameter

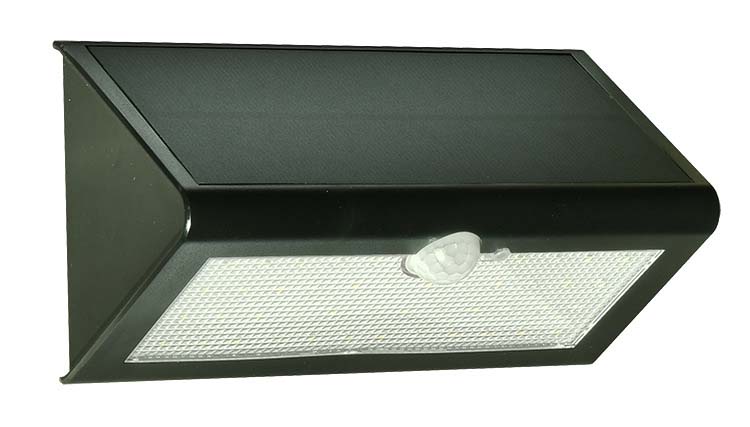

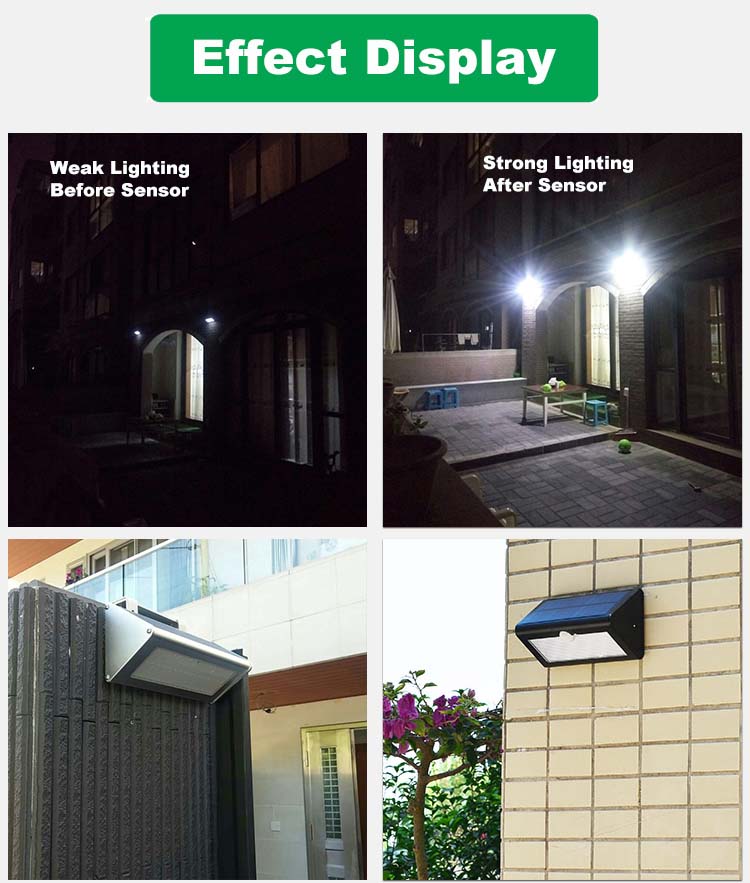

Products Disply





Product Name: Solar LED Sensor Light,
Solar Panel: Poly laminated board 5V,2.5W,
Battery: Lithium iron phosphate 3.2V,3000mAh,
Input/Output Power: 5.9W / 5.6W,
LED: Epistar chip, 0.2W, 28-30LM,

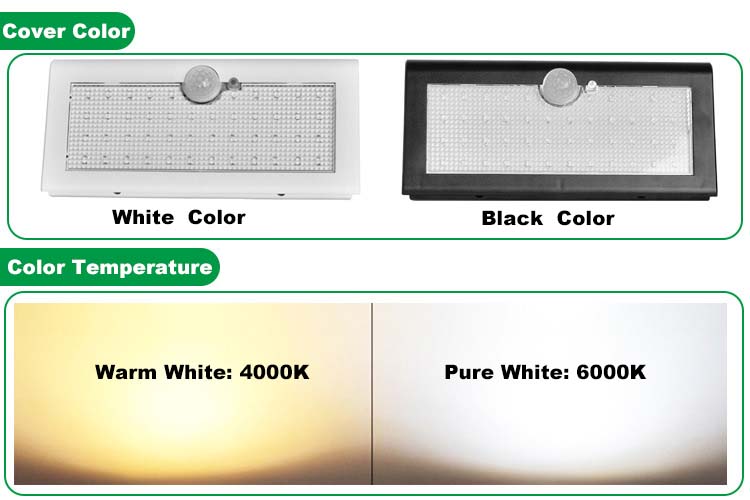

Color Temperature: 6000K pure white / 4000K warm white for option,
LED: 46pcs chips,
Lumen: 800lm,(equivalent to 80W ordinar buble),
Sensor Mode: four models for switch:
1. Body-Induction + Weak lighting,
2. Body-Induction,
3. Full Lighting,
4. Emergency Lighting.
Sensor: Pyroelectric Infrared Sensor(PIR),
Case material: ABS + PC +UV, black and white for option,
Cover materail: PC + UV,
Board material: Fiberglass Board,
Lifespan: 5 years,
Warranty: 3 years,
Dimension: 206*106*79mm,
Weight: 435g,
Qty/carton: 40pcs,
Certificate: CE, RoHS FCC.

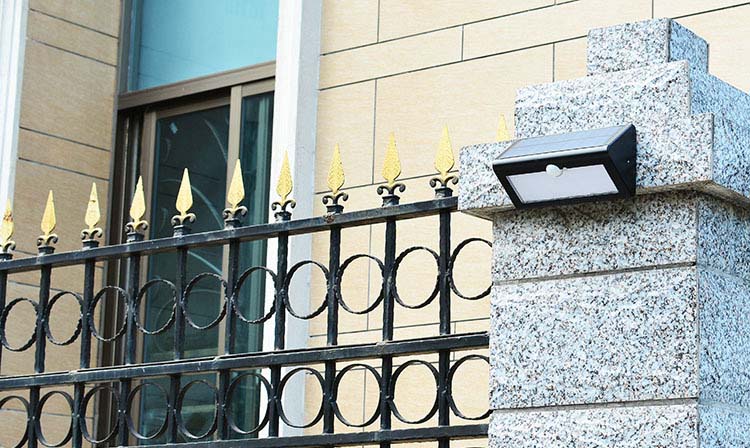

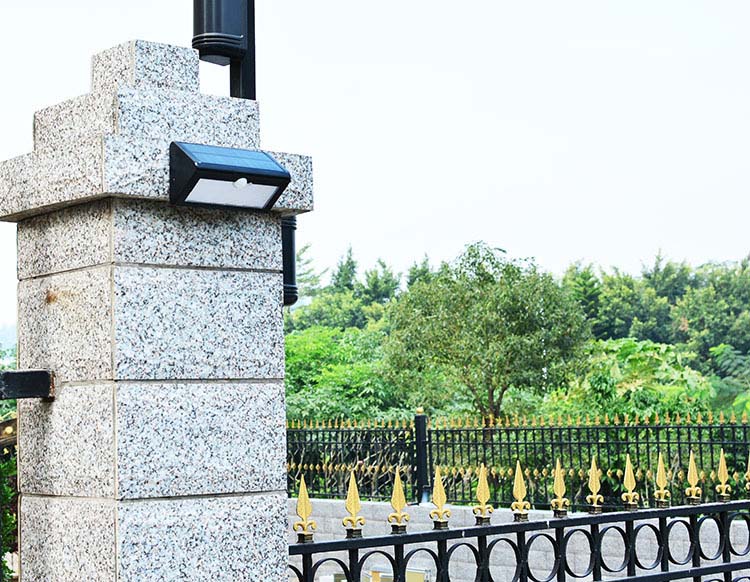

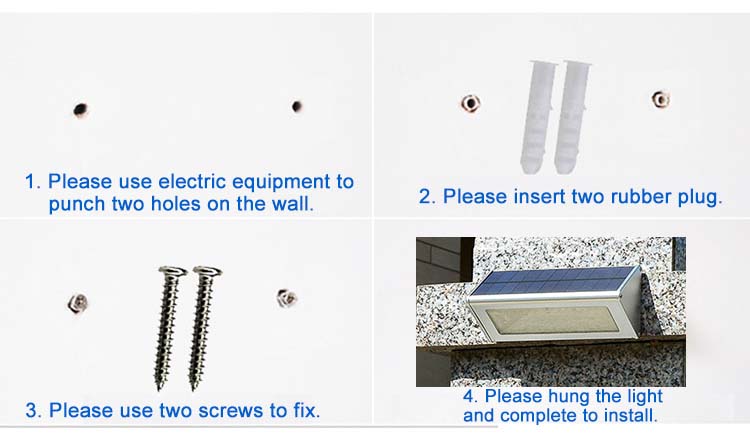

How to install the LED lamp ?

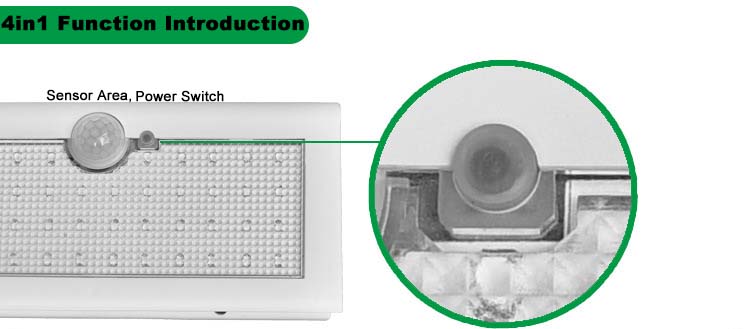

Function Introduction

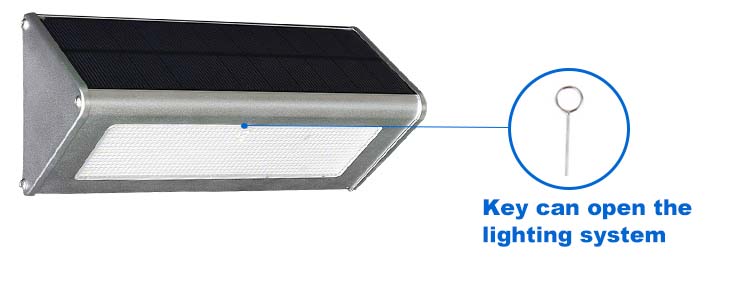

Press switch button for 5s to open the light system,it will enter the first mode,press one time to switch one mode:
1. Body Induction + Weak Lighting: It will be strong lighting when someone pass by, it will recover to be weak lighting after the one’s leaving,(Here is the first mode).
2. Body Induction: It will be strong lighting when someone pass by, it will turn off after the one’s leaving.
3. Illumination Mode: the LED light will auto to be lighting in night,keeping 30% of full lighting, it will light all night unless up to daytime,don’t have sensor function.
4. Emergency Lighting Mode: LED light can be strong lighting for 30 minutes,then auto to close, this mode can be used in special circumstance,such as emergency for power cut.
IAfter completing to switch this four function,you can power off,setting the mode that you want, the LED light will auto to work according to the mode that you set.
Under sensor mode,when someone is in the ranging of sensor,the LED light is always under sensor situation,it will auto to enter power saving mode after 10 seconds.

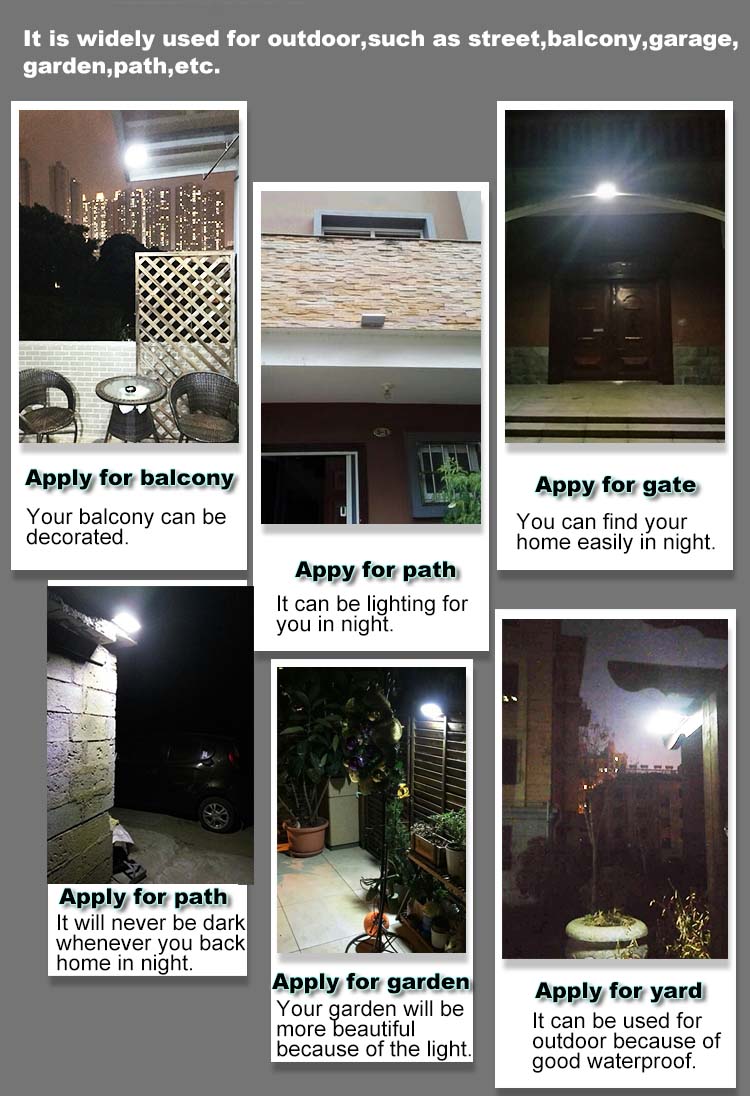

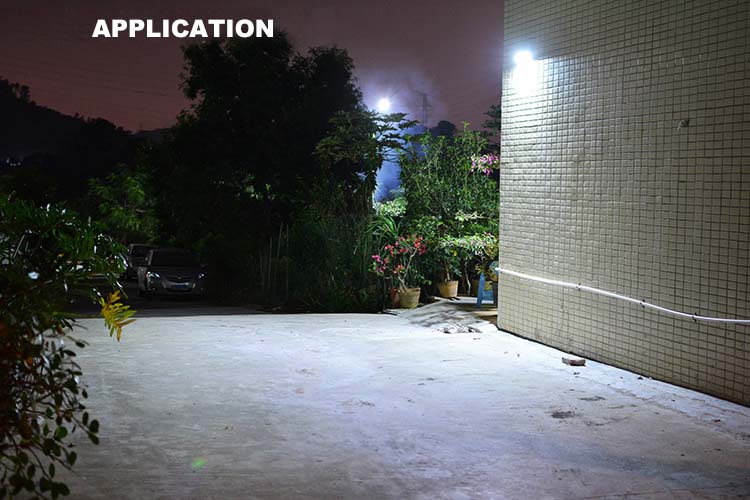

Application
