IP68 Roadway Paving Intelligent Solar Driveway Brick Light

Publish Time:2018/05/06 Solar Products View:480

Item No. BL-DSHL
Brand Bingsolar
Solar Panel Mono 33Wp,
Lithium Battery 6Ah, 24V
Lighting Power: 1.0W
LED Chip: 5050 RGB
Loading Capacity: 2 Tons ~ 5 Tons/m^2
Waterproof IP68
Dimension: 700*610*95mm
Weight 17.7KG
Detail Parameter

Briefly Introduction
With solar technology development, traditional highway and roadway construction have started to confront challenge, nearly all of Countries are researching the technology for solar roadway, highway or driveway, the first solar roadway was invented by Scott Brushaw and Julie, they started to test in their courtyard. After then, the technology for highway and roadway were being researched and tested in Italy, France, Netherlands, etc. In China, the first solar highway was opened to traffic in 28th, December, 2017. It is obvious that the technology for solar road is coming.

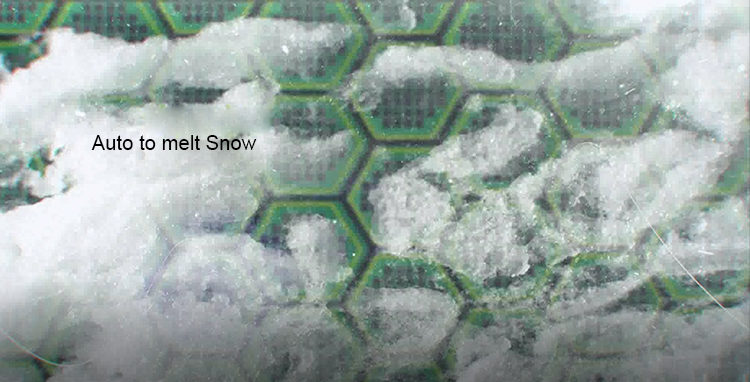

Presently, the cost of solar driveway (roadway) pavement is still high relative to traditional products, but if considering its intelligent management system, its cost-effective is very considerable. Here is Introduction for Management System from Solar Driveway (roadway).

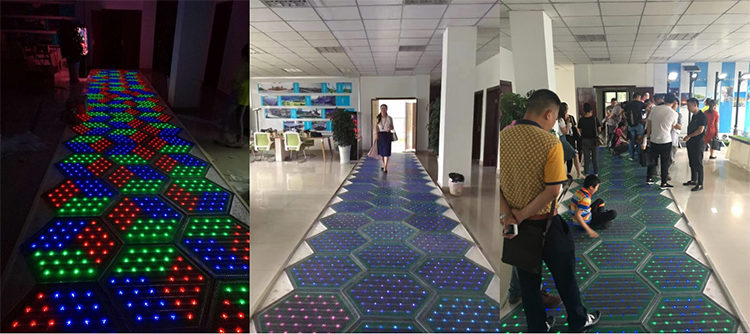

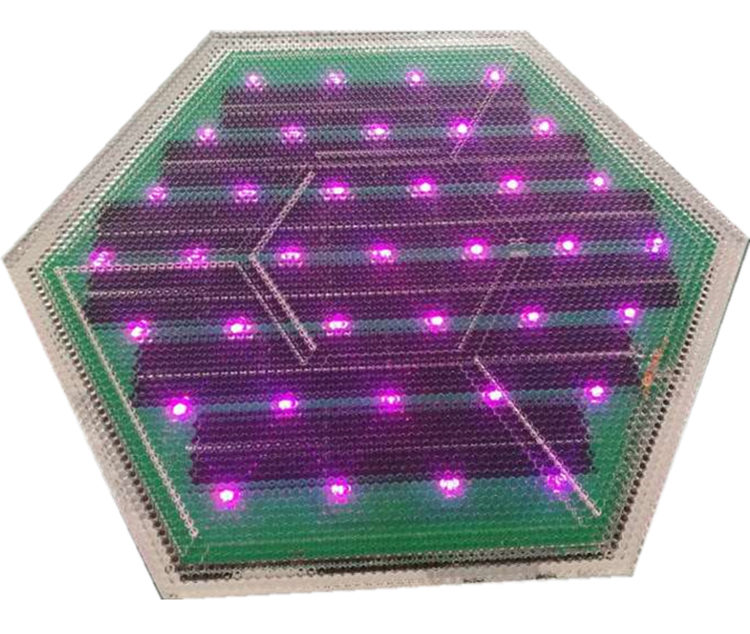

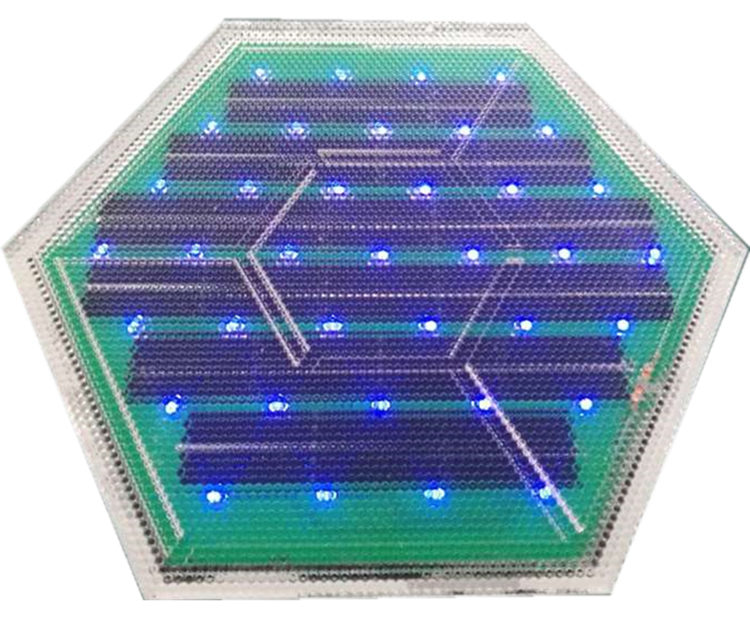

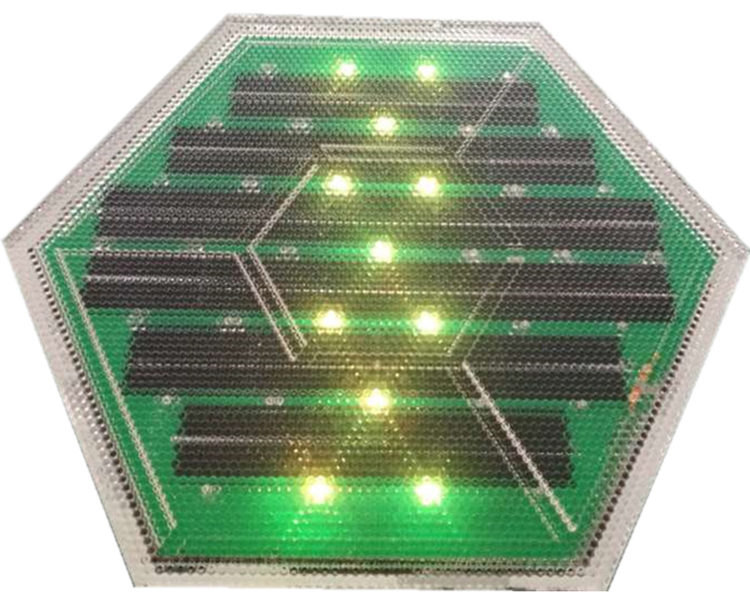

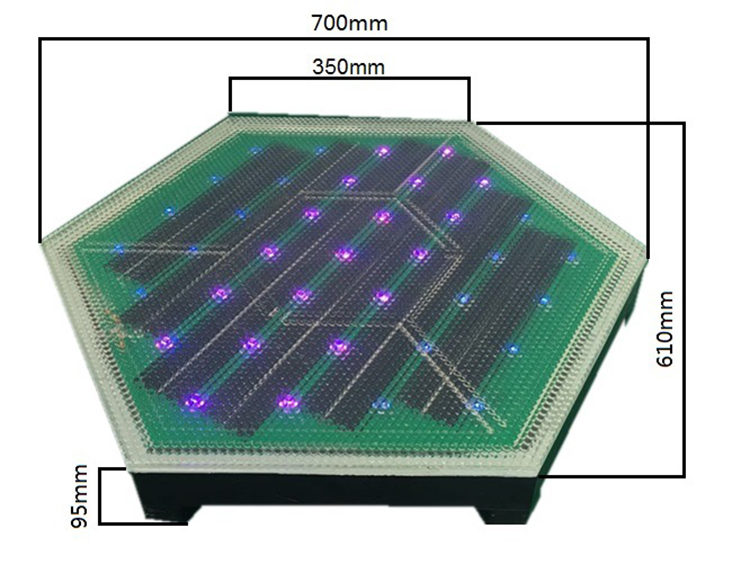

Display for solar driveway Brick Light
LED light would auto to work when it is in night and lighting color can be variation by itself.


Parameter for the intelligent solar driveway brick light

Solar Panel: High Efficient Mono 33Wp
Input Voltage: DC18V~72V
Output Voltage: DC5V
Lighting Power: 1W
LED Chip: 5050 RGB
Lighting Lifespan: >50000 hours
Control System: PV Control System+Smart Control System
Battery: Lithium Battery with Maintenance Free
Waterproof: IP68
Wearproof: 3
Loading Capacity: 2 Tons ~ 5 Tons Per Square Meter
Material: PA66 + Special Design Tempered Galss With Skid-Resistance
Working Mode (Off-Grid): Solar Power System, Intelligent Lighting System, Intelligent Sensor System, Smart Marking System
Optional Function: Light-Operated, Time Control, Smart Sensor, Synchronize to wireless connection
Weight: 17.7KG
Product Dimension: 700*610*95mm
Working Temperature: -40℃~ +50℃
Reliability: Rainproof for 20~30 days


Video to test the solar driveway brick light:

Please Note: Currently, we just suggest to move small vehicles on the solar units, don’t suggest to move big vehicles, such as truck, bus, etc.

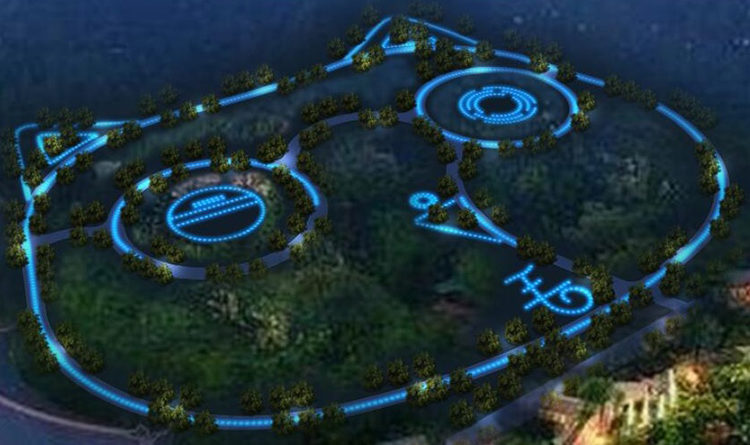

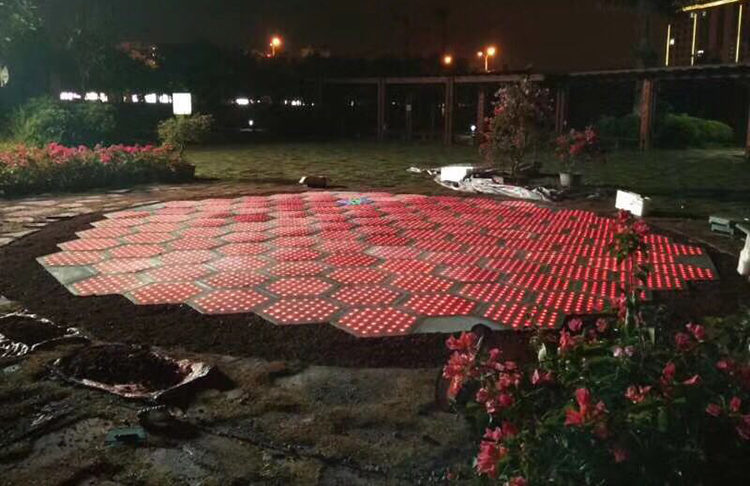

Application for the Solar Driveway brick light:

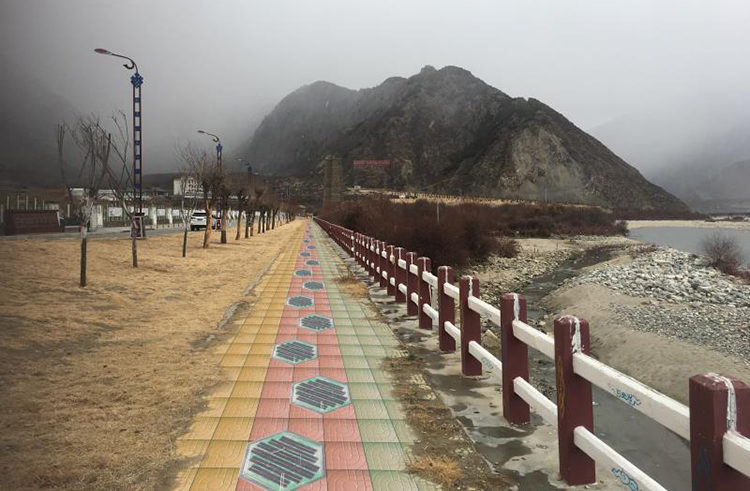

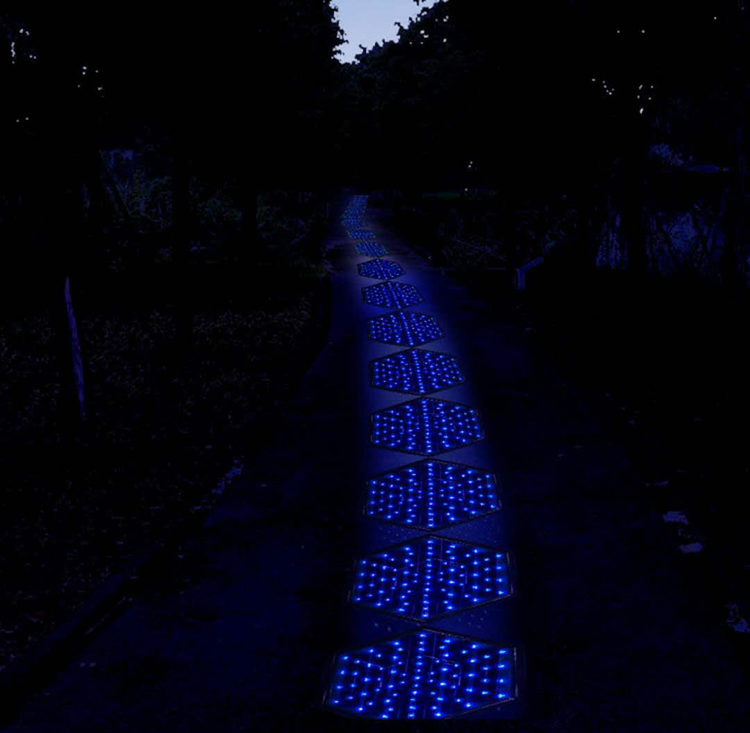

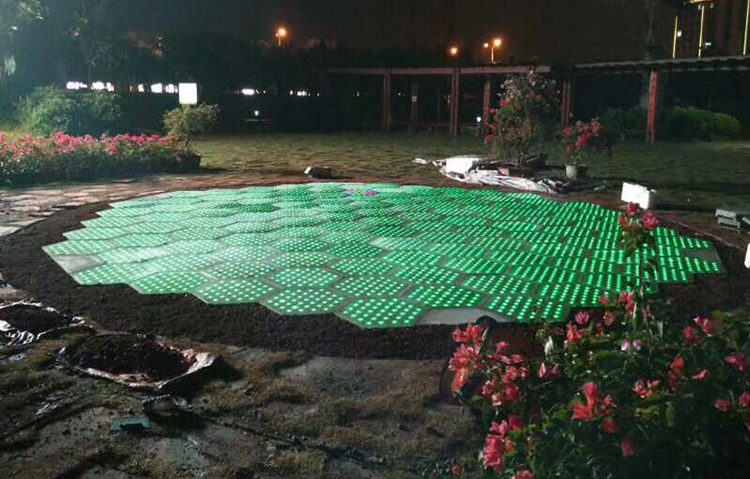

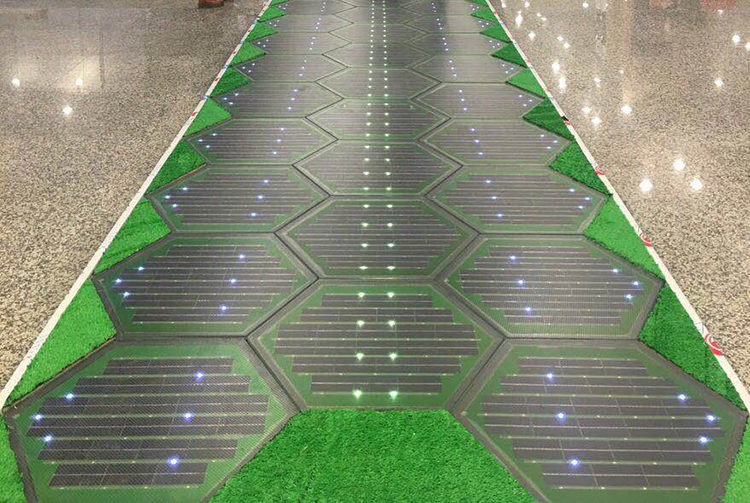

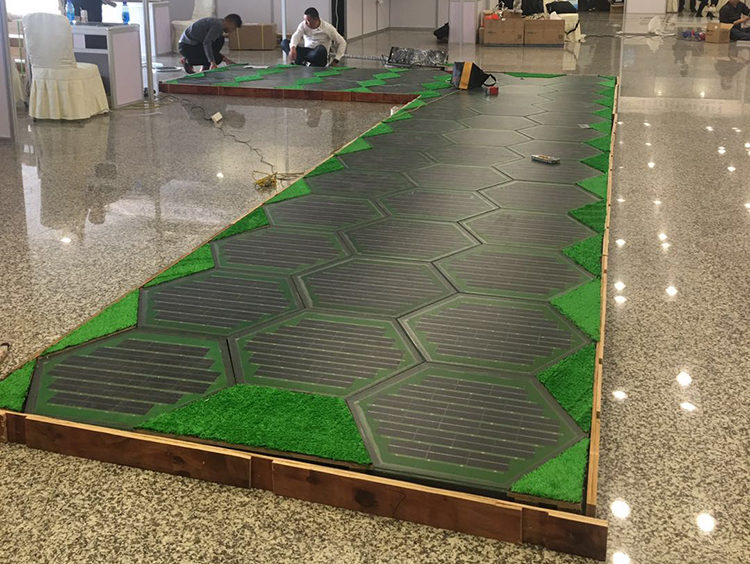

Successful Case for Our Solar Driveway Brick Light:
